John Finlay’s Dense Media Cyclones deliver separation efficiency ≥95% and an Ep value ≤0.03 engineered for coal washing, mineral processing, and mining applications worldwide. Available from 150mm to 1500mm diameter.
Definition & Overview
What is a Dense Media Cyclone?
A Dense Media Cyclone (DMC), also called a Heavy Media Cyclone (HMC), is a centrifugal separation device used in coal washery plants and mineral processing circuits to separate valuable product from waste material based on density differences.
Unlike a standard hydrocyclone, which classifies by particle size, a dense media cyclone uses a dense medium fluid, typically magnetite slurry for coal washing or ferrosilicon for mineral separation, to create a fluid with a controlled specific gravity between that of the target product and the reject material.
Particles lighter than the medium (clean coal and valuable mineral) exit through the overflow. Particles denser than the medium (waste and refuse) report to the underflow via the spigot. John Finlay’s dense media cyclones achieve separation efficiency ≥95% with Ep ≤0.03 among the highest available in coal washery applications.
Working Principle
How Does a Dense Media Cyclone Work?
Understanding the working principle of a heavy media cyclone is essential for process engineers designing coal washery plants and mineral processing circuits.
Product Range
Dense Media Cyclone Range – Design and Efficiency
John Finlay manufactures five series of dense media cyclones and heavy media cyclones for coal washeries and mineral processing, each engineered for specific application requirements and particle size ranges.

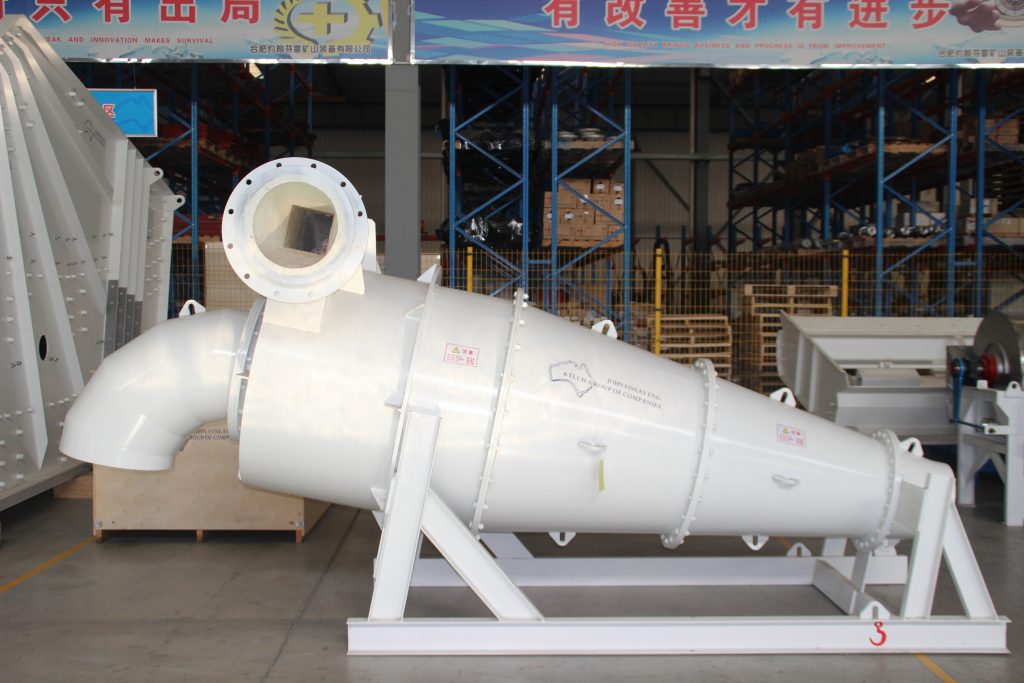

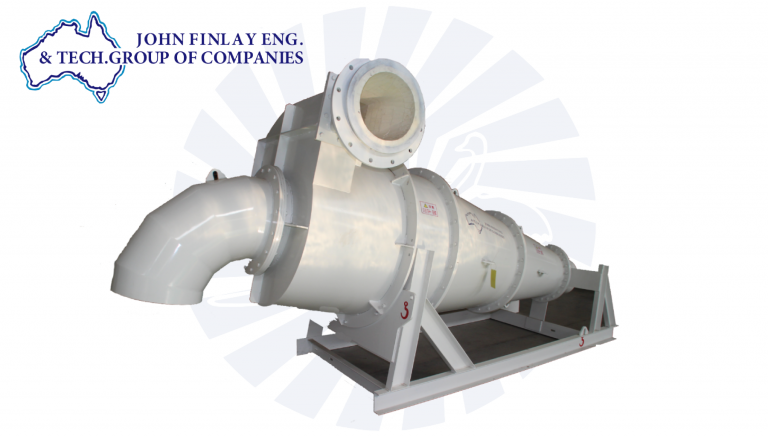

Two Product Heavy Media Cyclone / Dense Media Cyclone
John Finlay’s Two Product Heavy Media Cyclone is engineered to efficiently process large top-size coal at high feed rates within coal preparation plants. Designed for precise separation, it delivers separation efficiency ≥95% and an Ep value ≤0.03, ensuring minimal losses and high yield from your coal washery.

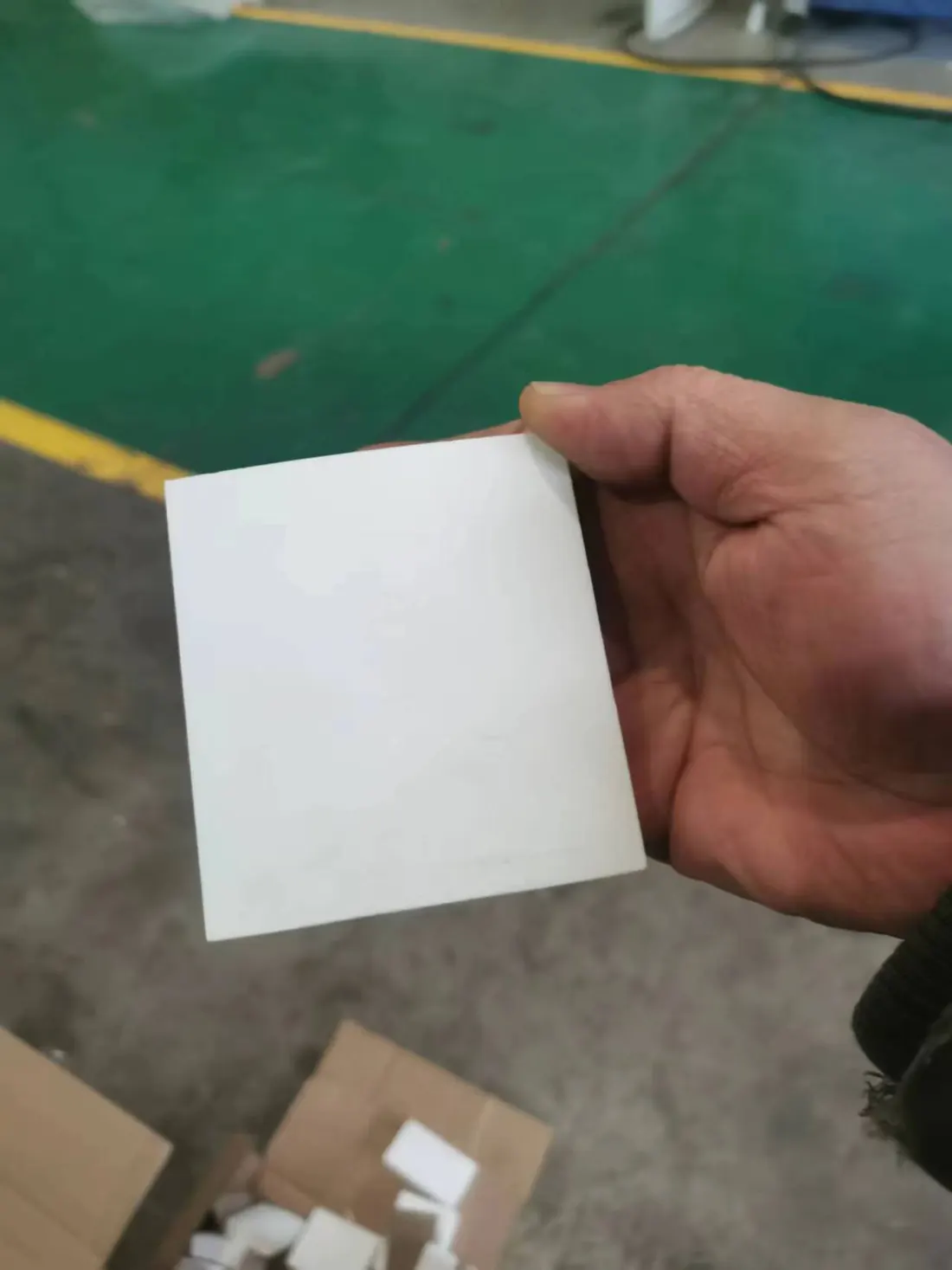

- Superior Wear Resistance: Constructed using 98% high-alumina ceramic tiles and 95% silicon carbide content, it has exceptional resistance to abrasion and corrosion. Engineered tiles strategically placed at critical wear zones.
- High Separation Precision: Optimized for large feed sizes. Advanced separation technology achieves Ep deviation ≤0.03 suitable for high-ash, high-sulfur Indian coal grades.
- Versatile Applications: Ideal for washing high-sulfur coal, high-ash coal, and other difficult-to-separate coal types. Ensures reliable operation under challenging conditions.
- Retrofit Ready: Suitable for upgrading older coal washing facilities, improving recovery and efficiency. Enables re-processing of coarse jig products (middling coal) to boost refined coal recovery by 3–5%.
| Model | Cylinder Dia. (mm) | Max Particle Size (mm) | Pressure (MPa) | Capacity (t/h) | Medium Vol. (m³/h) |
|---|---|---|---|---|---|
| JF-FLX-2-150YZ | 150 | ≤0.5 | 0.06–0.3 | 05–08 | 60–100 |
| JF-FLX-2-200YZ | 200 | ≤1 | 0.06–0.3 | 08–15 | 80–140 |
| JF-FLX-2-250YZ | 250 | ≤1 | 0.06–0.3 | 10–20 | 120–200 |
| JF-FLX-2-300YZ | 300 | ≤1 | 0.06–0.3 | 15–30 | 150–250 |
| JF-FLX-2-350YZ | 350 | ≤1 | 0.06–0.12 | 15–30 | 150–300 |
| JF-FLX-2-500YZ | 500 | ≤1 | 0.06–0.12 | 12–40 | 250–350 |
| JF-FLX-2-600YZ | 600 | ≤1 | 0.06–0.12 | 20–40 | 300–400 |
| JF-FLX-2-660YZ | 660 | ≤1 | 0.06–0.14 | 30–60 | 400–600 |
| JF-FLX-2-710YZ | 710 | ≤1 | 0.08–0.14 | 40–80 | 600–800 |
| JF-FLX-2-800YZ | 800 | ≤1 | 0.08–0.14 | 50–100 | 800–1000 |
| JF-FLX-2-850YZ | 850 | ≤1 | 0.08–0.14 | 50–100 | 1000–1300 |
| JF-FLX-2-900YZ | 900 | ≤1 | 0.10–0.16 | 50–100 | 1200–1500 |
| JF-FLX-2-1000YZ | 1000 | ≤1 | 0.10–0.16 | 100–150 | 1500–1800 |
| JF-FLX-2-1150YZ | 1150 | ≤1 | 0.10–0.16 | 150–200 | 1800–2000 |
| JF-FLX-2-1200YZ | 1200 | ≤1 | 0.12–0.18 | 200–300 | 2000–2200 |
| JF-FLX-2-1300YZ | 1300 | ≤1 | 0.12–0.18 | 250–350 | 2200–2400 |
| JF-FLX-2-1400YZ | 1400 | ≤1 | 0.12–0.18 | 300–400 | 2400–2600 |
| JF-FLX-2-1450YZ | 1450 | ≤1 | 0.12–0.18 | 350–450 | 2600–2800 |
| JF-FLX-2-1500YZ | 1500 | ≤1 | 0.12–0.18 | 400–500 | 2800–3000 |
* Specifications are indicative. Final design selection is application-specific. Contact JFI for technical consultation.

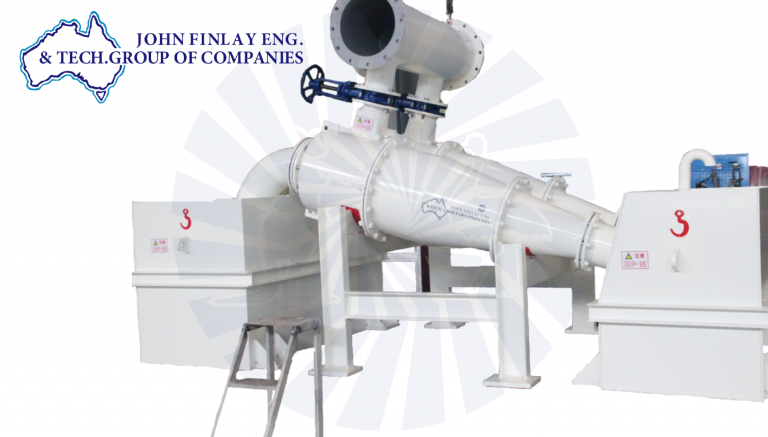

Pressurised Three Product Dense Media Cyclone
John Finlay’s Pressurised Three Product Dense Media Cyclone handles complex coal separation tasks with superior throughput and precision, producing clean coal, middling, and refuse in a single pass. Maximum processing capacity up to 550 t/h with integrated desliming.
- Feed Size Range: 110 mm–0.25 mm handles coarser feed than two-product cyclones.
- High Sorting Accuracy: Ep₁ ≤ 0.02–0.04 kg/L for ≤ 0.5 mm particles; Ep₂ ≤ 0.02–0.06 kg/L for ≥ 0.5 mm; ED ≤ 0.1 kg/L for 0.5–0.25mm range.
- Advanced Density Adjustment: Integrated dust collector size control and insertion depth adjustment of the secondary vortex finder. Enables real-time online adjustment of sorting density in the secondary dense media cyclone (DMC).
- High-Grade Construction: High-alumina ceramics, silicon carbide, and high-chromium alloy for exceptional wear resistance; multiple liner options for extended wear life, especially in high-ash refuse applications.
| Model | Cylinder Dia. (mm) | Max Particle (mm) | Pressure (MPa) | Capacity (t/h) | Medium Vol. (m³/h) |
|---|---|---|---|---|---|
| JF-FLX500/350 | 500/350 | 20 | 0.06–0.10 | 40–60 | 200–300 |
| JF-FLX600/400 | 600/400 | 30 | 0.08–0.12 | 50–80 | 300–400 |
| JF-FLX710/500 | 710/500 | 35 | 0.09–0.14 | 70–120 | 400–550 |
| JF-FLX780/550 | 780/550 | 40 | 0.10–0.15 | 100–160 | 550–650 |
| JF-FLX850/600 | 850/600 | 45 | 0.13–0.16 | 120–180 | 650–750 |
| JF-FLX900/650 | 900/650 | 50 | 0.15–0.18 | 140–200 | 750–950 |
| JF-FLX1000/710 | 1000/710 | 55 | 0.18–0.22 | 180–240 | 900–1100 |
| JF-FLX1100/780 | 1100/780 | 60 | 0.20–0.24 | 220–300 | 1100–1400 |
| JF-FLX1200/850 | 1200/850 | 70 | 0.22–0.28 | 300–400 | 1400–1700 |
| JF-FLX1300/920 | 1300/920 | 80 | 0.26–0.32 | 350–450 | 1600–1800 |
| JF-FLX1400/1000 | 1400/1000 | 100 | 0.30–0.40 | 450–550 | 1900–2300 |
| JF-FLX1500 | 1500/1100 | 1500 | 0.30–0.50 | 500–850 | 2300–2700 |

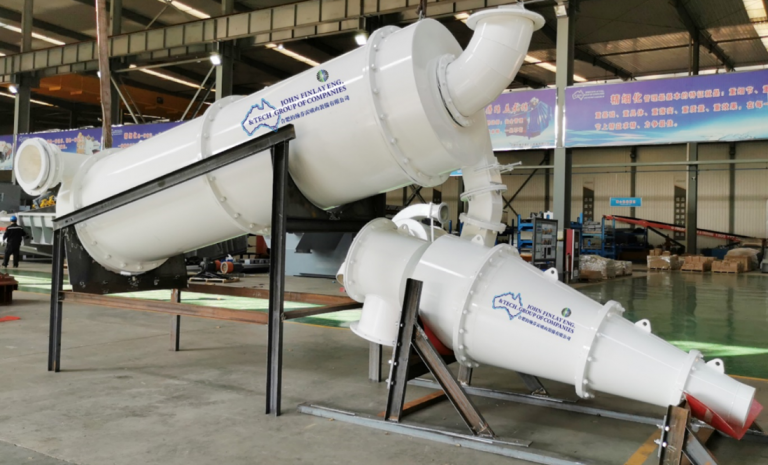

Fine Coal Dense Media Cyclone
John Finlay’s Fine Coal Dense Media Cyclone delivers a customizable design and high separation accuracy for fine coal particles from 0.1mm to 1.5mm a critical sizing range in coal washery plants where conventional cyclones underperform.
- Particle Size Range: 0.1 mm – 1.5 mm fine coal fills the gap between dense media bath and slurry hydrocyclone applications.
- High Separation Accuracy: Precision-engineered for fine coal beneficiation, where near-density material presents challenges at Indian coal washeries.
- Customizable Design: Available in multiple sizes from 150mm to 400mm diameter with configuration options to match your plant layout and throughput requirements.

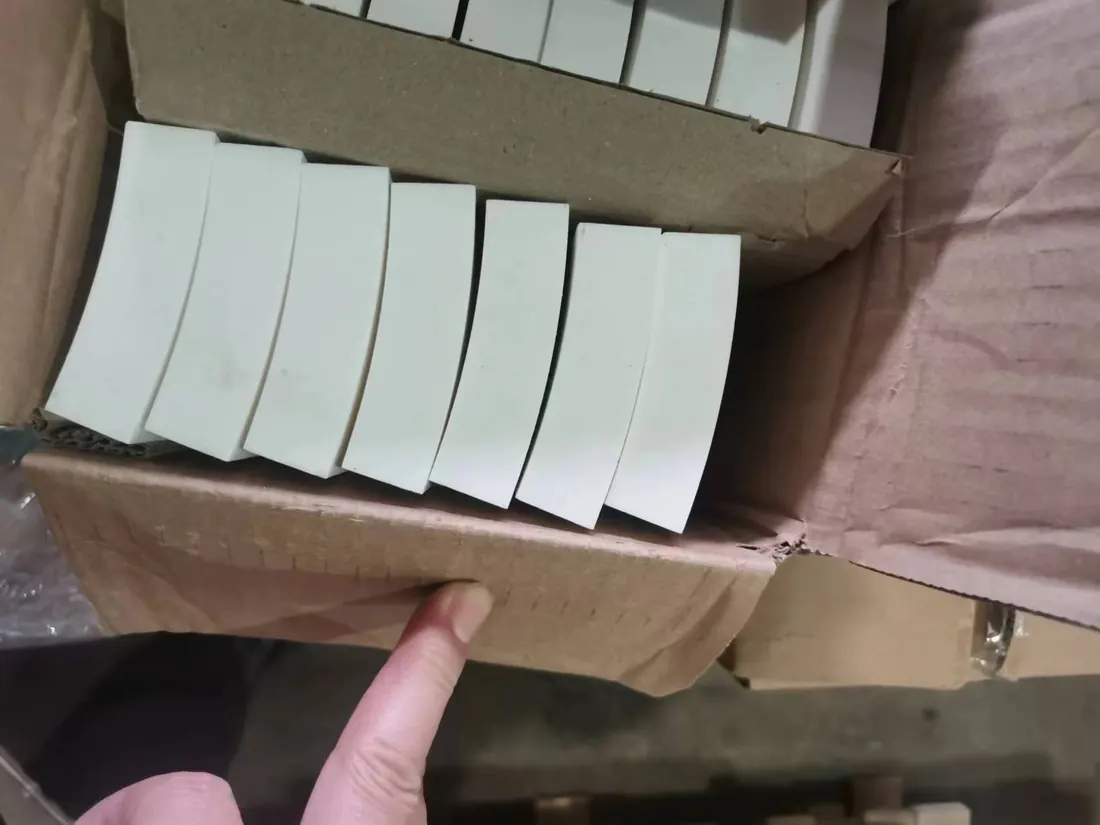

- Wear-Resistant Lining: Premium alumina ceramic inner lining for extended wear life in abrasive fine coal slurry conditions.
| Model | Cylinder Dia. (mm) | Pressure (MPa) | Max Granularity (MPa) | Processing Capacity (t/h) | Pulp Capacity (m³/h) |
|---|---|---|---|---|---|
| JF-FLX150 | 150 | 0.12–0.18 | 0.5 | 4–10 | 20–35 |
| JF-FLX200 | 200 | 0.18–0.22 | 0.5 | 10–15 | 35–55 |
| JF-FLX250 | 250 | 0.22–0.24 | 1.0 | 15–20 | 55–80 |
| JF-FLX300 | 300 | 0.24–0.28 | 1.0 | 20–30 | 80–120 |
| JF-FLX350 | 350 | 0.26–0.30 | 1.0 | 30–40 | 120–160 |
| JF-FLX400 | 400 | 0.28–0.32 | 1.5 | 40–55 | 160–220 |

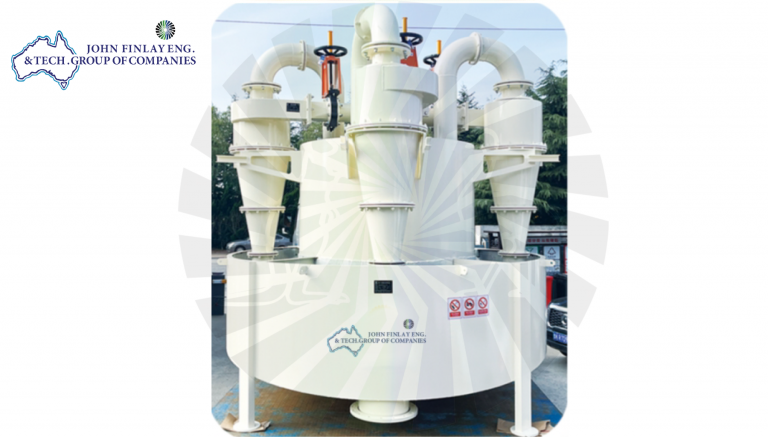

Coal Slurry Hydrocyclone
John Finlay’s Coal Slurry Hydrocyclone is designed to effectively recover coal slurry in coal preparation plants and to thicken pre-flotation pulp. Maximum size: 1250mm, processing capacity: 1300 m³/h, grading particle size: 0.04–0.3 mm.
- Pre-classification Volute Design: Outer wall separates feed solids before entering the cyclone body, minimizing material misplacement and wear.
- Premium Alumina Ceramic Lining: Lower section lined with high Al₂O₃ content ceramics for exceptional wear resistance tailored to various coal qualities by the Hefei John Finlay engineering team.
- Concentrated Classification Variant: Processes dilute coal slurry to improve fine coal recovery (≤0.5mm), reduce solid content in circulating water, and enhance slurry quality.
- Parallel Grouping: Small-diameter units can be grouped in parallel; large-diameter models operate independently in high-capacity circuits.
Coal Slurry Hydrocyclone: Technical Parameters
| Model | Cylinder Dia. (mm) | Pressure (MPa) | Capacity (t/h²) | Separation Size (mm) |
|---|---|---|---|---|
| JF-FLX 250 | 250 | 0.10–0.15 | 60–80 | 0.04–0.12 |
| JF-FLX 300 | 300 | 0.10–0.15 | 70–90 | 0.04–0.12 |
| JF-FLX 350 | 350 | 0.10–0.15 | 80–100 | 0.04–0.12 |
| JF-FLX 380 | 380 | 0.10–0.15 | 120–180 | 0.06–0.16 |
| JF-FLX 450 | 450 | 0.10–0.15 | 180–250 | 0.10–0.20 |
| JF-FLX 500 | 500 | 0.10–0.15 | 250–350 | 0.10–0.20 |
| JF-FLX 610 | 610 | 0.08–0.15 | 300–450 | 0.10–0.20 |
| JF-FLX 660 | 660 | 0.08–0.15 | 350–500 | 0.10–0.20 |
| JF-FLX 710 | 710 | 0.08–0.15 | 350–550 | 0.15–0.25 |
| JF-FLX 800 | 800 | 0.08–0.15 | 400–700 | 0.15–0.30 |
| JF-FLX 1000 | 1000 | 0.08–0.12 | 800–1200 | 0.20–0.30 |
| JF-FLX 1250 | 1250 | 0.08–0.12 | 1000–1300 | 0.20–0.30 |

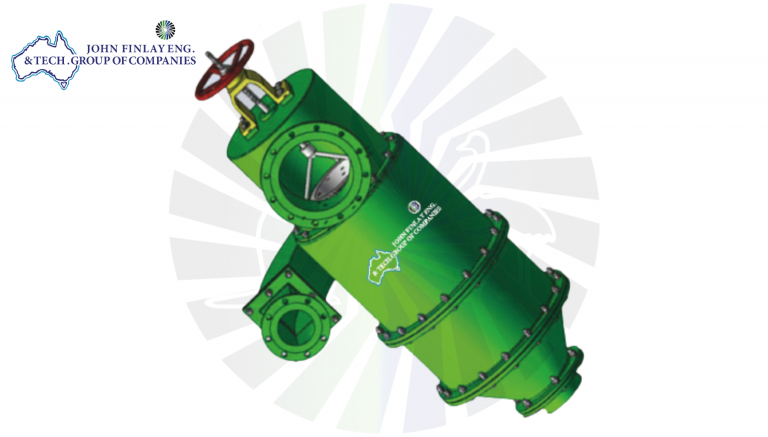

Water Medium Hydro Cyclone
Designed with optimized structural parameters, John Finlay’s Water Medium Hydro Cyclone utilizes the natural density of coal slurry as the separation medium. Ideal for processing high-sulfur coal containing high-sulfur iron ore, easy-to-separate coal, and coal slurry.
- Density Control: Separation density and accuracy are precisely controlled by adjusting the overflow tube diameter and cone angle no external dense medium required.
- High-Sulfur Coal: Ideal for processing high-sulfur coal containing high-sulfur iron ore and easy-to-separate coal slurry types common in Indian coalfields.
- Wear-Resistant Lining: Internally lined with wear-resistant high-alumina ceramics for long-lasting performance and reduced maintenance in continuous-duty conditions.
- Robust Construction: Well-suited for coal plants requiring precise density control and robust operation in high-sulfur or slurry-heavy environments.
| Model | Cylinder Dia. (mm) | Pressure (MPa) | Max Granularity (MPa) | Processing (t/h) | Pulp Capacity (m³/h) |
|---|---|---|---|---|---|
| JF-FLX 200 | 200 | 0.05–0.10 | 1 | 4–6 | 30–40 |
| JF-FLX 350 | 350 | 0.05–0.10 | 6 | 9–14 | 60–90 |
| JF-FLX 500 | 500 | 0.08–0.12 | 12 | 14–27 | 120–180 |
| JF-FLX 550 | 550 | 0.10–0.15 | 15 | 20–35 | 150–220 |
| JF-FLX 610 | 610 | 0.10–0.15 | 18 | 26–45 |
John Finlay's Core Advantages
Excellent Wear Resistance
High Processing Capacity
High Separation Efficiency ≥95%
High Cost-Performance Ratio
Applications
Dense Media Cyclone in Coal Washery & Mineral Processing Applications
John Finlay's heavy media cyclones are field-proven across coal beneficiation, mineral processing, and mining applications, serving Coal India subsidiaries (BCCL, SECL, MCL, CCL), private coal mining companies, and international clients.
Thermal & Coking Coal Washing
The primary application for dense media cyclones in India. Handles high-sulfur and high-ash Indian coal grades with near-density material (NDM) percentages up to 90% characteristic of BCCL, SECL, MCL and CCL coalfields. Delivers clean coal to ash specifications for power generation and steel plants. Coal India Subsidiaries

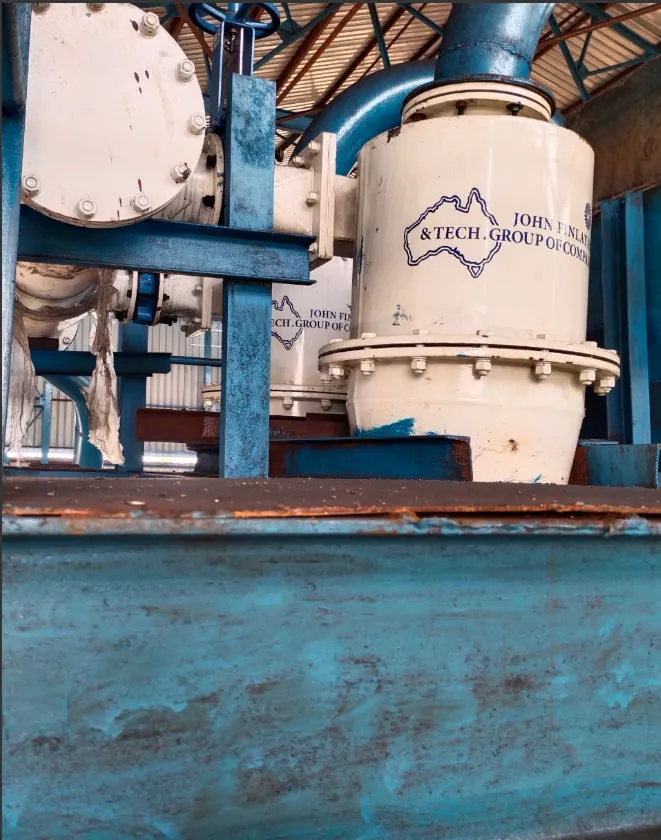

Coal Washery Plant Installations
John Finlay supplies complete dense media separation circuits for coal preparation plants from single cyclone units to multi-cyclone battery installations. Customisable design, high separation accuracy. Suitable for modular coal preparation plants (MCPP) and large-scale washeries up to 30 MTPA capacity.
Fine Coal Beneficiation (0.1–1.5 mm)
Fine Coal Dense Media Cyclones recover value from particles sized 0.1mm to 1.5 mm, which were previously difficult to process efficiently with conventional equipment. Reduces coal losses to tailings and improves overall plant yield in existing and new coal washery plants. Fine Coal Recovery
Iron Ore & Mineral Processing
Heavy media cyclones for iron ore beneficiation using ferrosilicon dense medium. Achieves precise cut densities for upgrading low-grade iron ore and removing gangue material. These cyclones can also be used for the separation of chrome, manganese, and other minerals with varying density. Mineral Processing
Cyclone Separator Mining :Slurry Thickening
Coal slurry hydrocyclones are used for pre-flotation pulp thickening, coarse slime recovery, and coal slurry classification in coal preparation plants. Processes dilute coal slurry to improve fine coal recovery (≤ 0.5 mm) and reduce solid content in circulating water.
Performance & Efficiency
Dense Media Cyclone Efficiency & Design Advantages
John Finlay’s dense media cyclones consistently outperform conventional wet processing methods in separation sharpness, throughput flexibility, and total cost of operation.
About John Finlay
Dense Media Cyclone Manufacturer in India
Why John Finlay?
As a global coal washery equipment supplier with 50+ years of experience and 130+ completed projects, John Finlay Eng. & Tech. Group is uniquely positioned to supply, install, and support your dense media cyclone requirements across India and globally.
Dense Media Cyclone — Frequently Asked Questions
Answers to the most common questions from process engineers, coal washery operators, and procurement teams about dense media cyclone selection, operation, and specifications.
A Dense Media Cyclone (DMC) also called a Heavy Media Cyclone (HMC) or Dense Medium Cyclone is a centrifugal separation device used in coal washing and mineral processing to separate particles based on density differences, not particle size.
It works by feeding a slurry of coal (or mineral ore) mixed with a dense medium (typically magnetite for coal, ferrosilicon for minerals) into a cyclone under pressure. Centrifugal force separates light particles (clean coal) from heavy particles (refuse/gangue). The terms “dense media cyclone” and “heavy media cyclone” are interchangeable in the coal washery industry.
The heavy media cyclone working principle involves four steps:

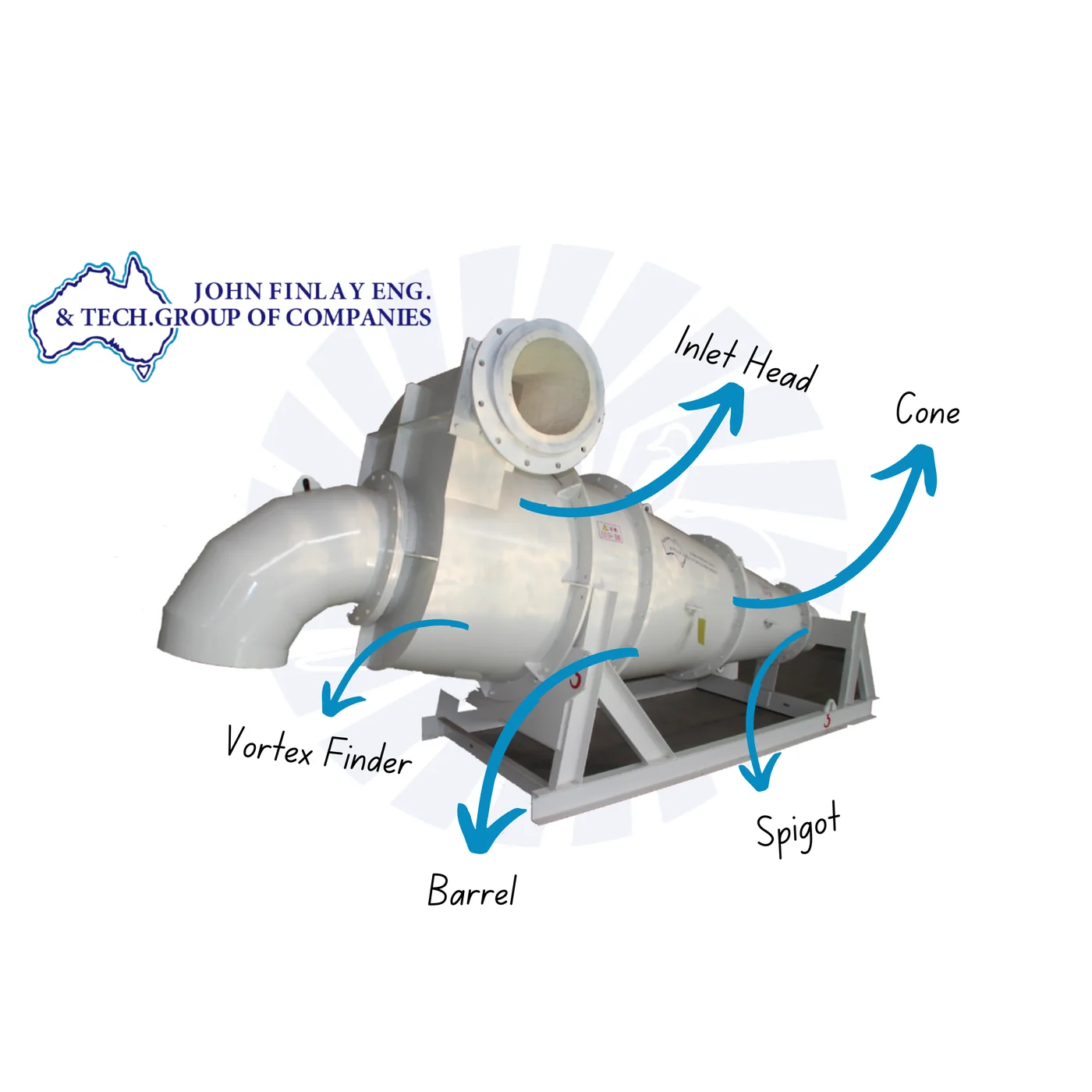

(1) Feed slurry enters tangentially at the inlet head, creating a spinning vortex.
(2) Centrifugal force separates particles heavy particles travel to the outer wall and spiral down to the spigot (underflow/refuse); light particles migrate to the air core and exit via the vortex finder (overflow/clean coal).
(3) Both streams are screened to recover dense medium (magnetite).
(4) Recovered medium is conditioned and recycled back into the circuit.
John Finlay’s dense media cyclones operate at pressures of 0.06–0.50 MPa depending on model size and achieve separation efficiency ≥95% with Ep ≤0.03.
Key benefits of dense media cyclones in coal washery applications include:
(1) High separation efficiency ≥95% even for difficult high-ash, high-sulfur Indian coal.
(2) Handles high near-density material (NDM) up to 90% where jigs and wet tables fail.
(3) Precise cut density control via medium SG adjustment.
(4) High throughput John Finlay Three Product DMC handles up to 550 t/h.
(5) Low Ep value ≤0.03 minimal misplacement improves product quality and yield.
(6) Retrofit-ready can re-process middling coal from existing jig circuits, improving total yield by 3–5%.
Dense media cyclones significantly outperform jig washing for difficult coals: DMCs achieve Ep ≤0.03 vs jig Ep of 0.05–0.12; DMCs handle high-NDM coals (up to 90% NDM) where jigs cannot achieve clean separation; DMCs deliver higher throughput per unit footprint; and DMC cut density is precisely controlled via medium density independent of feed rate variations. For Indian coals with difficult washability characteristics (common in the Jharia, Talcher, and Korba fields), dense media cyclones are generally preferred over jig washing.
Coal washing dense media cyclones primarily use magnetite (iron oxide powder, Fe₃O₄) suspended in water. Magnetite is preferred because it is readily recovered and recycled using magnetic separators, is non-toxic, and is cost-effective. For higher cut-density mineral applications (iron ore, diamonds, platinum), ferrosilicon is used. The medium specific gravity (SG) is carefully controlled, typically 1.3–1.9 SG for coal applications, and adjusted to achieve the required cut density for the specific coal or mineral being processed.
John Finlay manufactures dense media cyclones from 150 mm to 1500 mm cylinder diameter. The Two Product Heavy Media Cyclone range covers 150mm (5–8 t/h) through 1500mm (400–500 t/h). Three Product DMC models range from 500/350mm up to 1500/1100mm. Fine Coal Cyclones cover 150mm to 400mm. Selection is based on required volumetric throughput, feed size, medium circulation volume, and cut density. Contact John Finlay’s engineering team for application-specific sizing.
