Coal Washery Design & Engineering Built for Maximum Yield

From pre-feasibility to final process flow, JFI delivers precision coal washery plant design for thermal and coking coal operations, backed by 50 years of operational intelligence and 130+ commissioned washeries across India and globally.

Years
0 +
Washery projects delivered
100 +
Max single-plant design capacity
0 MTPA
Request a Quote
Design & Engineering
The Challenge & Our Answer

Poor Plant Design Costs You Millions. Every Year.

What Weak Design Looks Like

The Problem
Across India's coal sector, plant operators routinely suffer from yield losses of 8–15% due to undersized separation circuits, inadequate desliming stages, or equipment selection mismatched to run-of-mine coal characteristics. A washery designed without rigorous float-sink analysis and process simulation is simply leaving recoverable product on the reject pile.
Yield penalties of 8–15% from poor circuit design, costing crores per annum
Washery setups that cannot meet statutory ash% specifications for dispatch
Undersized thickeners and tailings ponds triggering environmental non-compliance
Equipment selection based on vendor preference, not plant-specific ROM data
No provision for future capacity expansion in the original plant layout

Engineering Grounded in Data

The JFI Solution
JFI's Design & Engineering team begins every project with statistically robust washability analysis of your ROM coal, defining the exact density cuts, fine coal recovery targets, and water balance requirements before a single piece of equipment is specified. The result is a coal washery plant design that delivers its rated yield from day one and is engineered to scale.
Data-driven process selection, HMC, jigging, or spirals based on your coal, not convention
Guaranteed compliance with BIS/ECL/MCL statutory ash and moisture specifications
Integrated environmental controls: zero-liquid-discharge options available
Vendor-neutral equipment selection tied to life-cycle cost, not capex alone
Modular plant layouts pre-designed for phased capacity expansion
How We Work

Our Coal Washery Design Process Flow

A structured, milestone-driven approach that transforms raw coal data into a fully engineered, bankable plant design, ready for construction or EPC tendering.



01

ROM Coal Characterisation & Washability Study

Float-sink analysis, proximate/ultimate testing, size-by-size washability curves and Tromp curve simulation.

04

3D Plant Modelling & Equipment Layout

Full BIM/3D design with clash detection, maintenance access corridors, and structural load calculations.

02

Pre-Feasibility & Techno-Economic Assessment

IRR, NPV, and payback period modeling. Plant capacity sizing (0.5 to 30 MTPA) vs. ROM supply forecast.

05

Detailed Engineering & DFR Package

Complete Detailed Feasibility Report ready for statutory approvals, lender due diligence, and EPC tender.

03

Process Flow Diagram & Mass Balance

Circuit selection, HMC, dense media bath, jigs, spirals, flotation, mapped with full water and mass balance.

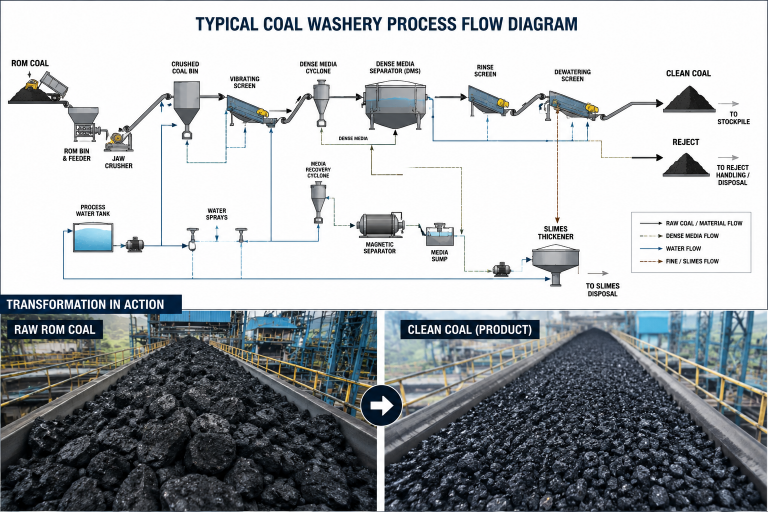

Coal washery process flow diagram showing ROM coal processing, dense media separation circuit, magnetic separator, dewatering screens, and clean coal product conveyor. John Finlay India
Core Service Scope

What JFI Delivers

Each engagement is scoped to the client's stage of project development. John Finlay India can enter at the pre-concept stage or take over a stalled detailed design.

Pre-Feasibility & Concept Design

Initial coal characterisation, order-of-magnitude capital cost estimates (±30%), plant capacity modelling, and circuit selection rationale for thermal and coking coal. Delivered in 4–6 weeks.

Concept Phase

Detailed Feasibility Report (DFR)

Bankable DFR with washability analysis, environmental baseline, statutory permit roadmap, water management plan, capital cost estimates (±10%), and financial modelling suitable for lender review.

Planning Phase

Process Flow Diagram & Mass Balance

Circuit-level process design covering coarse coal (HMC/DM Bath), small coal (jigging/spirals), fines (flotation/filtration), and tailings management. Full water balance with recirculation modelling.

Design Phase

3D Plant Layout & Structural Design

Full 3D plant model with structural steel design, equipment foundation loads, piping and instrumentation diagrams (P&IDs), and civil layout, BIM-ready for contractor handover.

Engineering Phase

Equipment Selection & Tender Support

Vendor-neutral equipment sizing and specification: heavy media cyclones (25mm–1000mm dia.), banana screens, centrifuges, magnetic separators. Full tender document preparation and technical bid evaluation.

Procurement Phase

Regulatory & Environmental Design Integration

EIA-aligned plant design, zero-liquid-discharge options, coal slurry pond sizing per DGMS norms, effluent treatment design, and statutory submission-ready drawing packages.

Compliance
Technical Specifications & Advantages

The Engineering Precision Behind Every JFI Plant Design

JFI's design methodology integrates proprietary tools and 50 years of live operational feedback from washeries we have designed, built, and operated.

Capacity & Scale Range

Plant capacity design range: 0.5 MTPA to 30 MTPA in a single installation
Feed coal top size: 300mm ROM down to ultrafine 0.5mm flotation feed
Modular design blocks allow staged capacity expansion without full plant redesign
Both thermal coal (5500+ kcal/kg) and coking coal (low-ash, low-sulphur) circuit expertise
Simultaneous design of two-product and three-product washery configurations

Process Engineering Precision

Float-sink washability analysis at minimum 8 density fractions for Tromp curve accuracy
Mass balance modelling to ±2% accuracy before equipment is specified
Water balance closed-circuit modelling, designed for zero process-water discharge
Dense media recovery circuit design, magnetite loss targets ≤0.5 kg/tonne
Fines circuit design: spirals, flotation cells, disc filters, filter presses, site-specific selection

Proprietary JFI Design Tools

Wenshu AI Algorithm integration for predictive process optimisation within design simulations
Patent-protected heavy media cyclone geometry optimised for Indian coal characteristics
In-house 3D plant modelling software with clash detection and constructability analysis
Life-cycle cost (LCC) modelling over 20-year plant horizon, not just capex
Design standards: IS, BIS, DGMS, CPCB, and international (ISO/ASTM) where required

Deliverables, What You Receive

Comprehensive Detailed Feasibility Report (DFR), bankable, lender-ready
Process flow diagrams (PFDs) and piping & instrumentation diagrams (P&IDs)
General arrangement (GA) drawings, structural layouts, and equipment lists
Equipment technical specifications and RFQ packages for competitive tendering
Construction schedule, phasing plan, and commissioning protocol
