Dense Medium Control System (System 01)

A complete instrument set and control scheme for the dense medium circuit: density, magnetite content, level and pressure, all non-radioactive, supplied as instruments, as a packaged system, or as a full design-and-implementation scope.

A7 Hero image alt text coal washery cut point control instrumentation; dense medium circuit instrumentation; non radioactive dense medium control; suspension density magnetite control (the keyword list pasted in as alt text) Differential pressure density meter, dense medium control system instrumentation, coal washery, John Finlay

4 + control scheme

System Components

±0.002 g/cm³

Density Accuracy

±0.5%

Magnetite Accuracy

No AERB Licensing

Regulatory Burden

DEFINITION & OVERVIEW

What is the Dense Medium Control System?

C2 Overview, first paragraph The Dense Medium Control System is a complete instrument set and control scheme for the dense medium circuit. The instruments that set the cut-point and hold it there. Suspension density, magnetite content, level and pressure are the four variables that actually determine separation performance, and this system measures every one of them continuously, feeding a control scheme and panel that closes the loop rather than leaving it to periodic manual checks. The Dense Medium Control System is a complete instrument set and control scheme for the dense medium circuit: the instruments that set the cut-point and hold it there. Suspension density, magnetite content, level and pressure are the four variables that actually determine separation performance, and this system measures every one of them continuously, feeding a control scheme and panel that closes the loop rather than leaving it to periodic manual checks.

Four instruments and a control scheme make up the standard system:  a differential pressure density meter for continuous suspension density on the correct and dilute medium lines; a magnetic content meter for magnetite concentration, the basis of medium balance; a differential pressure level transmitter for correct and dilute medium sump levels; pressure transmitters for cyclone inlet and pump discharge pressure; and the control scheme and panel itself, handling the density loop, medium make-up logic, and operator interface.

Every measurement in this system is non-radioactive; the density meter uses differential pressure, not a nucleonic source, which means the whole system avoids AERB licensing entirely, a genuine regulatory and administrative simplification for any washery in India specifying dense medium instrumentation from scratch.

Complete Cut-Point Instrumentation

Density, magnetite content, level and pressure for every variable that determines separation performance, measured continuously.

Non-Radioactive Throughout

The differential pressure density meter at the core of this system avoids AERB licensing entirely; there is no radioactive source anywhere in the set.

Supplied However You Need It

C4 Icon card 3, "Supplied However You Need It" Available as individual instruments, a packaged system, or a full design-and-implementation scope, not a forced all-or-nothing purchase.

Key Performance Data
Parameter
Value
Density Meter Range
0 – 4 g/cm³, ±0.002 g/cm³ accuracy
Magnetic Content Meter Range
0 – 1000 / 0 – 2000 g/L, ±0.5% accuracy
Level Transmitter Accuracy
±0.1% digital, ±0.25% analogue
Pressure Transmitter Range
−0.1 MPa to 100 MPa, ±0.2% FS typical
Common Platform
Shared electronics and spares across all transmitters
Radioactive Source
None, differential pressure and electromagnetic induction principles only.

KEY FEATURES

Key Features & Performance Highlights

Four instruments and a control scheme from John Finlay's own instrumentation documentation.

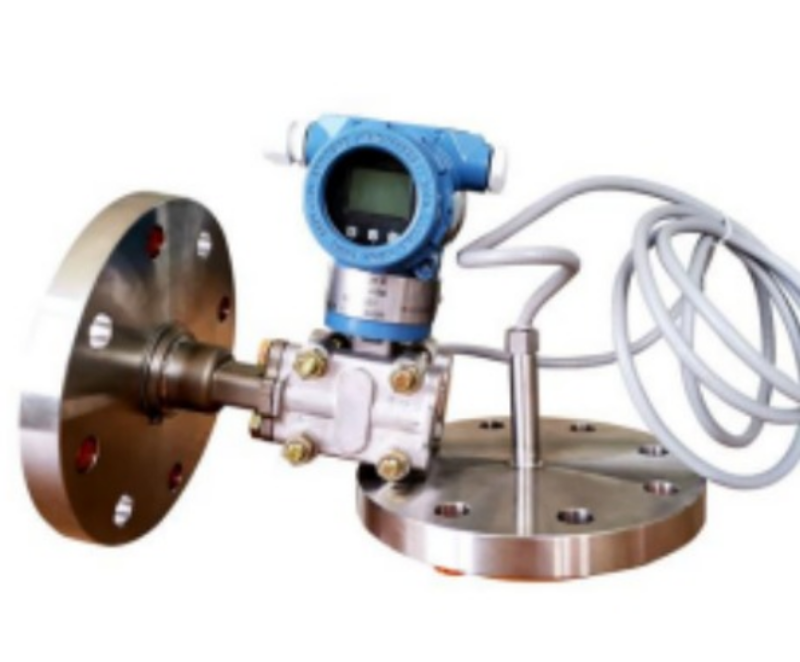

Differential Pressure Density Meter

Continuous suspension density on the correct medium and dilute medium lines, ±0.002 g/cm³ accuracy, no radioactive source, no AERB licensing.

Magnetic Content Meter

Measures magnetite concentration in the suspension by electromagnetic induction, the basis of medium balance across a 0-1000 or 0-2000 g/L range at ±0.5% accuracy, via a full-bore flanged spool with no insertion element in the slurry stream

DP Level & Pressure Transmitters

A differential pressure level transmitter tracks correct and dilute medium sump levels; pressure transmitters monitor cyclone inlet and pump discharge pressure; both share a common electronics platform and spares holding one calibration procedure and one set of spares across the plant.

Control Scheme and Panel

Ties all four measurements (density, magnetite concentration, level and pressure) into the density loop, medium make-up logic, and operator interface, closing the loop rather than leaving cut-point control to periodic manual checks.

WORKING PRINCIPLE

How the Dense Medium Control System Works

Four instruments feed one control scheme, closing the loop on cut-point control rather than leaving it to periodic manual measurement.

Suspension Density Measurement

The differential pressure density meter continuously measures suspension density on the correct medium and dilute medium lines.

Magnetite Concentration Measurement

The magnetic content meter measures magnetite concentration by electromagnetic induction, the basis of medium balance calculations.

Sump Level Monitoring

The differential pressure level transmitter tracks correct medium and dilute medium sump levels continuously.

Circuit Pressure Monitoring

Pressure transmitters monitor cyclone inlet pressure and pump discharge pressure, both sharing a common electronics platform.

Closed-Loop Control

The control scheme and panel combine all four measurements into the density loop, medium make-up logic, and operator interface, closing the loop rather than relying on periodic manual sampling.

TECHNICAL SPECIFICATIONS

Dense Medium Control System | Full Specification

Specifications for the four instruments and the control scheme in this system, from John Finlay's instrumentation documentation.

Parameter
Key Spec
Function
Differential Pressure Density Meter
0-4 g/cm³, ±0.002 g/cm³, 0.2 s response
Correct & dilute medium density
Magnetic Content Meter
0-1000/2000 g/L, ±0.5%, DN100-200
Magnetite concentration, medium balance
DP Level Transmitter
±0.1% digital, ±0.25% analogue
Correct & dilute medium sump levels
Pressure Transmitters
−0.1 to 100 MPa, ±0.2% FS typical
Cyclone inlet, pump discharge pressure
Control Scheme & Panel
Shared electronics, common spares
Density loop, medium make-up, operator interface

COMPARISON

Instrumented Dense Medium Control vs. Manual Circuit Monitoring

With Dense Medium Control System

Density, magnetite, level and pressure all measured continuously
Closed-loop density and medium make-up control
No radioactive source anywhere in the system
One calibration procedure and spares holding across transmitters
Supplied as instruments, packaged system, or full design scope

A4 Comparison, right-hand column heading Without Direct Blockage Detection (Typical) Manual Circuit Monitoring (Typical)

Density and magnetite checked periodically by sampling
Medium make-up decisions based on operator judgement
May depend on a radioactive density gauge and AERB licensing
Different instruments, different calibration procedures and spares
Instrumentation added piecemeal rather than as a coordinated system
Applications

Applications of the Dense Medium Control System

This system is specified wherever dense medium cut-point control needs to be measured and closed-loop controlled, not periodically checked and manually adjusted.

Dense Medium Cyclone Circuit Control

The core application is continuous density, magnetite, level and pressure measurement feeding cut-point control on the dense medium cyclone circuit.

Medium Balance Management

Magnetite concentration measurement is the basis for medium balance calculations and make-up decisions.

Retrofitting Away from Radioactive Density Gauges

A complete, non-radioactive replacement path for washeries looking to eliminate AERB licensing from their dense medium circuit instrumentation.

Greenfield Washery Design

Specified as a complete system from the outset in new dense medium circuit designs, rather than assembling instrumentation piecemeal.

Closed-Loop Automation Projects

Forms the instrumentation foundation for washeries moving from manual density checks to automated, closed-loop cut-point control.

About John Finlay

Dense Medium Control Instrumentation Supplier in India

Why John Finlay?

4+1

Instruments + Control Scheme
Density, magnetite content, level and pressure measurement, plus the control scheme tying them together.

130+

Coal Washery Projects

Completed EPC projects worldwide, including Asia’s largest coking coal washery at 30 MTPA.

AERB Licenses Required

Non-radioactive density measurement throughout the system with no Atomic Energy Regulatory Board licensing burden.

Non-radioactive density measurement throughout the system with no Atomic Energy Regulatory Board licensing burden.

IN

India-Based Support

Manufactured at Hefei John Finlay Mining Equipment Co., Ltd. and supported locally in India for installation, commissioning, spares and service.

Dense Medium Control System | Frequently Asked Questions

Common questions from coal washery process engineers evaluating complete dense medium circuit instrumentation.

Four instruments (a differential pressure density meter, a magnetic content meter, a differential pressure level transmitter, and pressure transmitters for cyclone inlet and pump discharge) plus the control scheme and panel that ties them together.

No, the density measurement uses differential pressure, not a radioactive source, so the entire system avoids AERB licensing and the associated radiation-safety compliance burden.

Yes, the system is supplied as individual instruments, as a packaged system, or as a full design-and-implementation scope, depending on what your circuit needs.

Density and magnetite concentration are the two variables that most directly determine cut-point, and this system measures both continuously, feeding a control scheme that closes the loop rather than relying on periodic manual sampling.

One calibration procedure and one spares holding across the plant, rather than managing different calibration routines and spare parts inventories for each instrument type.
