Vibrating Screens for Mining Banana Screens & Horizontal Screens

Vibrating screens in mining are mechanical devices that classify and separate mineral and coal particles by size using high-frequency vibration. Material is fed onto a vibrating screen deck fitted with apertures of a specific size. Particles smaller than the apertures pass through (undersize), while larger particles travel along the deck and discharge at the end (oversize). The vibration prevents blinding and keeps material moving. John Finlay’s mining vibrating screens achieve screening efficiency >95% with a screen body lifespan up to 10 years.

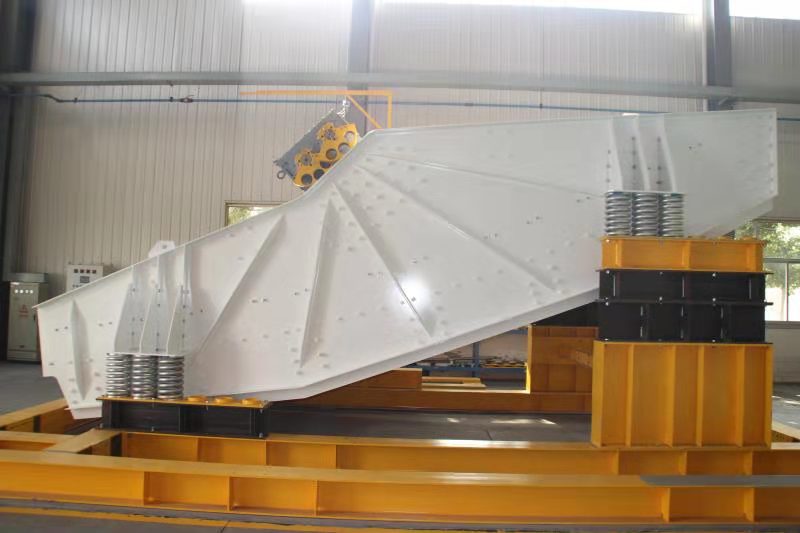

A banana screen (banana vibrating screen) has a curved, multi-slope deck profile multiple inclination angles that decrease from feed end to discharge end. This gives higher material velocity at the feed end (for rapid stratification and anti-blinding) and slower velocity at the discharge end (for accurate separation). A horizontal vibrating screen has a flat, uniform inclination deck. Banana screens offer higher throughput capacity and are better suited for wet, sticky materials making them the preferred choice for coal washery drain-and-rinse applications and high-capacity coal sizing.

A single layer (single deck) vibrating screen has one screening deck and separates feed into two products — oversize and undersize. A double layer (double deck) vibrating screen has two decks stacked one above the other with different aperture sizes, producing three size fractions in a single pass: coarse retained on the top deck, middling from the bottom deck, and fines passing through both decks. Double deck screens — including John Finlay’s Double Layer Banana Screens — maximise classification capacity per unit of floor space, ideal for coal washery plants that need coarse, medium and fine coal simultaneously.

In coal washery plants, vibrating screens are used for:
(1) Pre-screening raw coal feed to size before dense media cyclones or dense medium baths.
(2) Drain-and-rinse screens to recover magnetite medium from product and refuse.
(3) Classifying clean coal into commercial size fractions (coarse, nut, fines).
(4) Dewatering fine coal product.
(5) Scalping oversized material before crushers.
John Finlay supplies banana screens and horizontal vibrating screens for all these duties, engineered to match the specific coal type and plant throughput.

Yes, John Finlay’s horizontal vibrating screens are well-suited for stone crushing and aggregate processing plants. They classify crushed stone, gravel, and sand into commercial size fractions after each crushing stage. Heavy-duty construction, high vibration intensity (8–11 mm), and S1 continuous duty rating ensure reliable operation in the harsh, high-abrasion environment of quarry and aggregate processing. Available from 1.8×3.6 m up to 4.3×7.3 m with motor ratings up to 75 kW

John Finlay Eng. & Tech. Group of Companies is a global vibrating screen manufacturer and industrial vibrating screen supplier with operations in India. With 50+ years of coal washery experience and 130+ completed projects, John Finlay supplies banana screens, horizontal vibrating screens, and high frequency screens to Coal India subsidiaries (BCCL, SECL, MCL, CCL) and private mining companies across India and globally. Visit johnfinlay.in for more information.
